CT3138 Tablet Replacement

Place the stand on a flat surface.

Gently place the case screen face down.

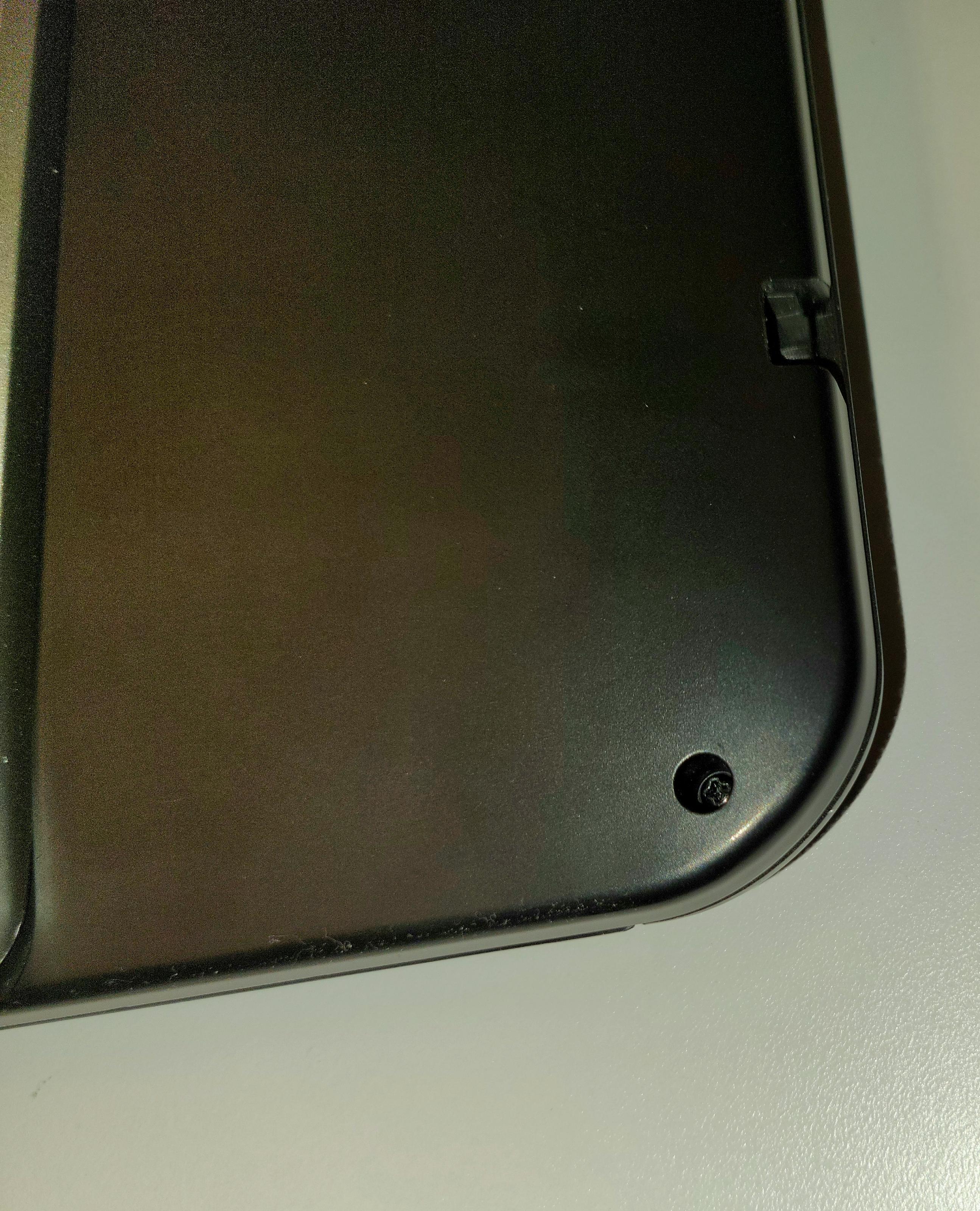

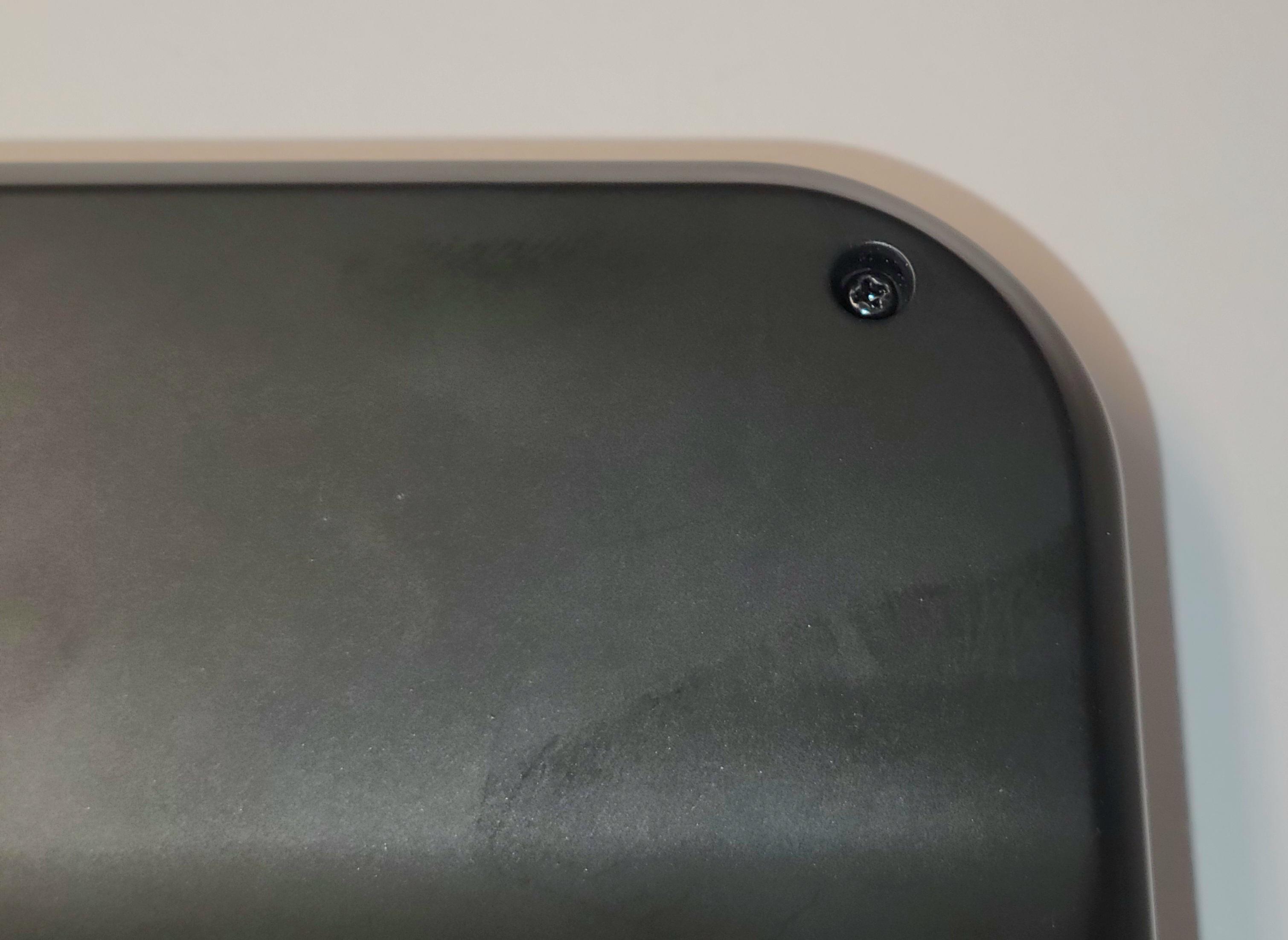

Unscrew the two screws on the right-hand side.

Once both screws are loosened Flip the case back to the front with the InVue logo facing up. The left-hand flap should now freely lift up 45 degrees.

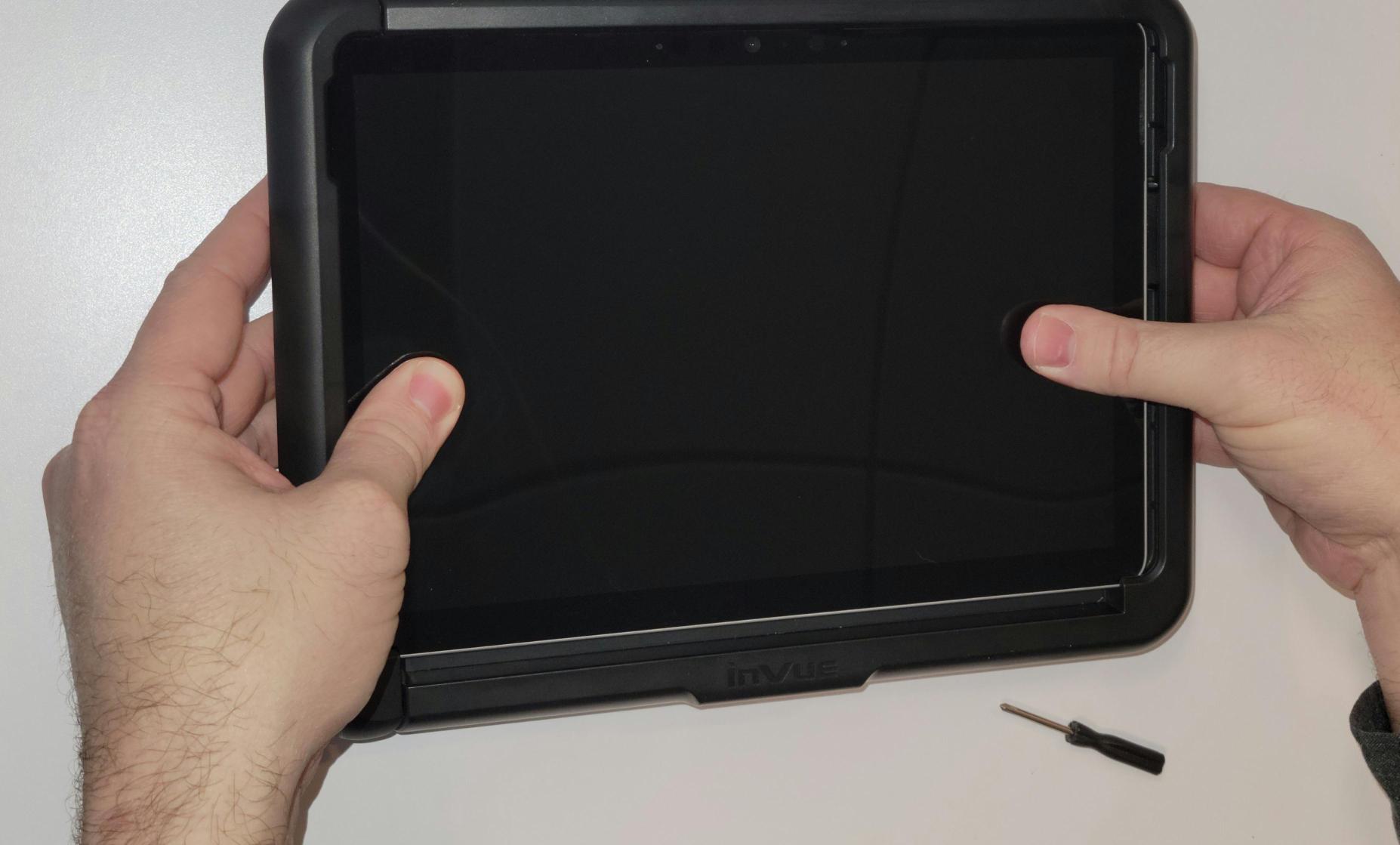

With both hands held on either side, firmly push the tablet toward the open flap. After about one Inch (3cm) you will see the power cable. Move to the next step before pulling the tablet out.

Hold the power cable with two fingers. Then gently pull the tablet out of the case. The tablet should slide freely without any force required.

Attaching the power adapter can be tricky. Use this video for help.

After that, you can close the hinge and screw in the two screws.

Confirm your tablet is charging bu placing it back on the charger.

Now you are back and ready to use the new tablet in the case.
